Emtek Style #16 8-1/4" Keyed Bronze Door Handle-Plate Set

Emtek Products Inc Emtek 8-1/4" Keyed Style #16 Style Bronze Door Handle-Plate

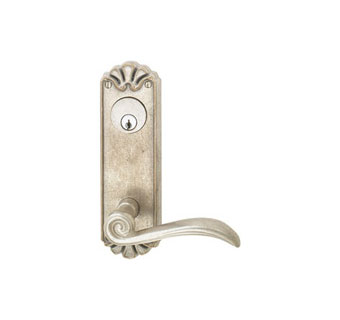

(Shown in Silver Patina finish with Medici lever)

Price: Add Item to Cart to View Price - Why do I have to do this?

Select your options below to modify your Emtek Style #16 handle-plate:

Function: Click here for function help.
Finish Color: Click finish icons below to preview samples.
Handle Style: Click here to preview handle styles.
Handing: Click here for handing help.
Keying: Click here for keying help.
Backset: Click here for backset help.
Strikeplate: Click here for strikeplate help.
Faceplate: Click here for faceplate help.
Quantity:
... FREE shipping on orders over $99!
Click on a finish below to view sample images:
Medium Bronze Sample
Medium Bronze
Flat Black Sample
Flat Black

  • Product Details
  • Warranty
  • Installation Guides

Door needs two standard 2-1/8" bores with 3-5/8" center-to-center hole spacing.

Emtek locks have Schlage-keyed cylinders - only Schlage keys are compatible with Emtek locks.

Single-cylinder fits doors 1-5/8" to 2" thick. For thicker doors up to 3", specify during checkout.

Double-cylinder fits doors 1-1/2" to 2" thick. For thicker doors up to 2-3/4", specify during checkout.

Single-cylinder locks have a keyed-cylinder on the exterior side, and a thumb-turn on the inside. The single-cylinder function is the most common, providing exterior security, but the thumb-turn provides safety for an easy exit in case of fire or other emergency.

Double-cylinder locks are commonly used on doors with glass panels, or nearby windows, to prevent intruders from reaching through the glass to unlock the door (as a key is required to unlock the bolt from both the inside and outside of the door). However, safety concerns are raised with double-cylinder locks as it is more difficult to unlock the door from the inside when trying to escape in case of fire (because a key is required to open the locked door). In most cases we do not recommend double-cylinder locks.

Product Contents:

This complete door handle-plate set includes everything you need for one door:

  • 2 handle-plates with selected handle attached (1 for each side of the door)
  • 1 Schlage-keyed cylinder, housing collar (2 for double-cylinders)
  • 1 hardened steel bolt with brass faceplate attached
  • 1 brass trim strikeplate for bolt
  • 1 heavy-duty steel understrike
  • 1 latch
  • 1 strikeplate
  • 1 faceplate
  • 1 screw pack (includes mounting screws for rosette, strikeplate, faceplate)
  • Dummy mounting plates (with dummy sets only)

Emtek Style #16 Door Handle-Plate Product Features:

Emtek's bronze handle plates are forged (not cast or stamped) from solid bronze to yield thick and heavy door handles for a truly solid look and feel.

Emtek's latch nose-bolts, strikeplates, and faceplates are solid brass.

Emtek door knobs and lever door handles are supported by springs behind the rosette or backplate that will actively return the door handles back to their original "rest" position to prevent sag.

Latches are heavy-duty diecast construction with strong internal springs and solid brass nose bolts.

A plastic bushing located in the joint between handle and rosette ensures a friction free wear surface - preventing metal from bearing on metal and provides smooth long-lasting operation.

Door handles are connected to the rosettes and backplates with a permanent clip.

Spindles are spring-loaded "half-spindles" pre-installed into the base of each door handle.

Each Emtek door handle has a set screw which, when tightened, eliminates wobbling of the door handle.

The threaded tubes inside an Emtek lock are machined brass.

Bronze finishes are "living" finishes and are expected to show wear over time.

Emtek Products, Inc. warrants all items to be free of finish/mechanical defects for 5 years from the purchase date given the following conditions are upheld:

  1. The item has not been modified, abused, misused, or improperly installed, maintained, and/or repaired.
  2. The item does not have an "aging" finish applied to it. Meaning, there is no warranty for items with Oil Rubbed Bronze, French Antique, Rust, Deep Burgundy, Medium Bronze, Flat Black Patina and Silver Patina finishes.
